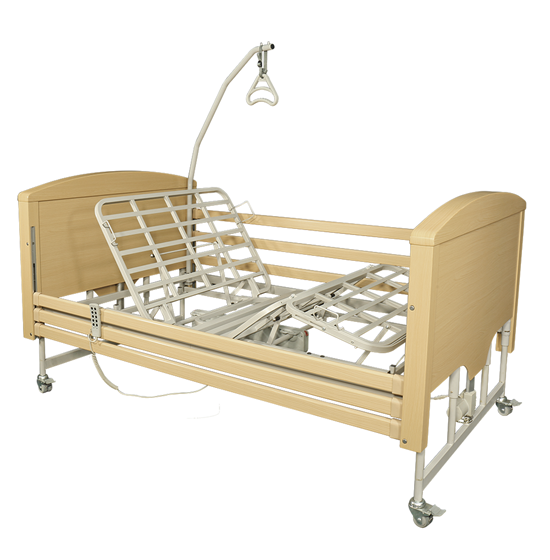

Electrical bed "V-Plus" - Semi-double

Κωδικός 10-2-190


Semi-double, multi folding electrical bed, heavy duty "bariatric", with wood covering. Metal sommier with bars to fit the mattress. The backrest tilting and the lower limbs elevation is conducted with an electric controller that locks, to prevent accidents. Option to tilt further a part of the backrest adjustment mechanism with safety button for the easy feeding of the patient. The total height of the bed is electrically adjusted at selected positions. Option for independent operation of the motors of the headboard or the footboard ("Trendelenburg/Anti-Trendelenburg Position").

Aluminum side protections, bilateral, in the color of wood, and removable. Patient elevation trapeze with deltoid adjustable handle which fits to both sides of the sommier. Backup 9V battery case, in the event of a power failure. Easy transport on site, thanks to the four casters with brakes, which secure independently. The bed has four metal sockets for the stabilization of the mattress. The assembly is easy without the use tools.

Technical Characteristics

Total bed length 220cm

Total bed width 136cm

Sommier Length 200cm

Sommier Width 120cm

Sommier elevation range from the ground 28cm to 68cm

Maximum backrest angle 70°

Maximum lower extremities angle 35°

Knee angle 25°

Maximum Patient Weight 200kg
